532414860 Craftsman Pinion Assembly - No Longer Available

SKU
Sold out
Original price $125.95 - Original price $125.95
Original price
$125.95
$125.95 - $125.95
Current price $125.95
No Longer Available

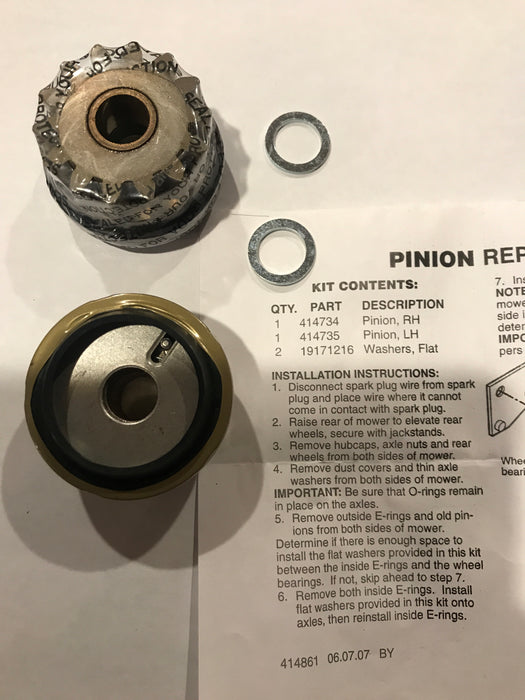

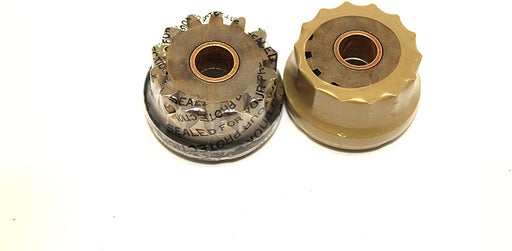

 532414860 Craftsman Kit includes Right and Left Pinion Assemblies

Replaces 188292, 532188330, 532188331, 414860, 5321883-31, 5321883-30, 188331 and 188330

This kit includes the following part numbers:

Right hand pinion assembly 188330

  • 175103 Pinion, Gear
  • 175102 Retainer, Drive, RH
  • 175098 Pawl
  • 188291 Spring, Torsion
  • 175104 Disc, Drive
  • 184172 Seal, Friction

Left hand pinion assembly 188331

  • 175103 Pinion, Gear
  • 175098 Pawl
  • 188291 Spring, Torsion
  • 175104 Disc, Drive
  • 184172 Seal, Friction
  • 175105 Retainer, Drive, LH

Char's part note - some of these parts might be available individually, but the assemblies 188330 and 188331 are now only available in this kit.  A few of the individual parts are no longer available by themselves (ie 175105)

Fits models

Canadian Craftsman

944.364430 Lawn Mower
944.364520 Lawn Mower
944.364521 Lawn Mower
944.364522 Lawn Mower
944.364530 Lawn Mower
944.364540 Lawn Mower
944.364541 Lawn Mower
944.364542 Lawn Mower
944.364580 Lawn Mower
944.364680 Lawn Mower
944.365450 Lawn Mower
944.365451 Lawn Mower
944.365452 Lawn Mower
944.365540 Lawn Mower
944.365550 Lawn Mower
944.365551 Lawn Mower
944.365770 Lawn Mower
944.365880 Lawn Mower
944.365890 Lawn Mower
944.365990 Lawn Mower
944.366890 Lawn Mower
944.366993 Lawn Mower
944.367750 Lawn Mower
944.367751 Lawn Mower

US Craftsman
917377010 Rotary Lawn Mower
917377030 Rotary Lawn Mower
917378950 Lawn Mower
917374431 Lawn Mower
917377822 Walk Behind Lawnmower
917371420 Lawn Mower
917371491 Lawn Mower
917370530 Lawn Mower
917370540 Lawn Mower
917370560 Lawn Mower
917370580 Lawn Mower
917370710 Lawn Mower
917370711 Lawn Mower
917370712 Lawn Mower
917370714 Lawn Mower
917370715 Lawn Mower
917370716 Lawn Mower
917370720 Lawn Mower
917370721 Lawn Mower
917370722 Lawn Mower
917370723 Lawn Mower
917370724 Lawn Mower
917370730 Lawn Mower
917370731 Lawn Mower
917370732 Lawn Mower
917370733 Lawn Mower
917370735 Lawn Mower
917370740 Lawn Mower
917370741 Lawn Mower
917371230 Lawn Mower
917371441 Lawn Mower
917371541 Lawn Mower
917371700 Lawn Mower
917371710 Lawn Mower
917371800 Lawn Mower
917371810 Lawn Mower
917371811 Lawn Mower
917371820 Lawn Mower
917374780 Lawn Mower
917374781 Lawn Mower
917374801 Lawn Mower
917374800 Lawn Mower
917374802 Lawn Mower
917374803 Lawn Mower
917374820 Lawn Mower
917374821 Lawn Mower
917374822 Lawn Mower
917374823 Lawn Mower
917375830 Lawn Mower
917375840 Lawn Mower
917375940 Lawn Mower
917375950 Lawn Mower
917376510 Lawn Mower
917376570 Lawn Mower
917376580 Lawn Mower
917376630 Lawn Mower
917376690 Lawn Mower
917376990 Lawn Mower
917377040 Lawn Mower
917377060 Lawn Mower
917377070 Lawn Mower
917377090 Lawn Mower
917377091 Lawn Mower
917377110 Lawn Mower
917377240 Lawn Mower
917377664 Lawn Mower
917377794 Lawn Mower
917377840 Lawn Mower
917377665 Lawn Tractor
917377700 Lawn Tractor
917377710 Gas Walk Behind Lawn Mower
917377781 Lawn Tractor
917377782 Lawn Tractor
917377783 Lawn Tractor
917377784 Lawn Tractor
917377790 Lawn Tractor
917377795 Lawn Tractor
917377821 Lawn Tractor
917377823 Lawn Tractor
917377841 Lawn Tractor
917377842 Lawn Tractor
917377843 Lawn Tractor
917377844 Lawn Tractor
917377890 Lawn Tractor
917377891 Lawn Tractor
917377892 Lawn Tractor
917377940 Lawn Tractor
917377941 Lawn Tractor
917377942 Lawn Tractor
917378490 Lawn Tractor
917378480 Lawn Mower
917378481 Lawn Mower
917378491 Lawn Mower
917378931 Lawn Mower
917378960 Lawn Mower
917378520 Lawn Mower
917378521 Lawn Mower
917378530 Lawn Mower
917378531 Lawn Mower
917378922 Lawn Mower
917378932 Lawn Mower
917378933 Lawn Mower
917378934 Lawn Mower
917378951 Lawn Mower
917378980 Lawn Mower
917389960 Lawn Mower
917389962 Lawn Mower
917377061 Rotary Lawn Mower
917.378480 Gas Walk Behind Lawn Mower
Husqvarna
PR7Y21RHP (96142001201) (2004-01) Lawn Mower: Consumer Walk Behind
PR7R21B (2004-02) Lawn Mower: Consumer Walk Behind
PR7R21C (2004-03) Lawn Mower: Consumer Walk Behind
R53 SVW (95417024301, 954170243) (2005-02) Lawn Mower: Consumer Walk Behind
R53 SVW (95417024300, 954170243) (2005-02) Lawn Mower: Consumer Walk Behind
5521 RS (96143002400, 961430024) (2007-01) X Lawn Mower: Consumer Walk Behind
5521 RS (96143000205, 961430002) (2007-01) Lawn Mower: Consumer Walk Behind
5521 RS (96143000204, 961430002) (2006-09) Lawn Mower: Consumer Walk Behind
5521 RS (96143000203) (2005-11) Lawn Mower: Consumer Walk Behind
5521 RS (96143000202) (2005-05) Lawn Mower: Consumer Walk Behind
5521 RS (96143000201) (2005-05) Lawn Mower: Consumer Walk Behind
5521 RS (96143000200, 532188645) (2005-03) Lawn Mower: Consumer Walk Behind
R52 S (96141006001, 961410060) (2007-05) Lawn Mower: Consumer Walk Behind
55B21 HV (954223227, 532188294) (2004-03) C Lawn Mower: Consumer Walk Behind
55B21 HV (954223227, 532183699) (2004-03) A Lawn Mower: Consumer Walk Behind
55C21 HV (954223890, 532188294) (2004-01) B Lawn Mower: Consumer Walk Behind
55C21 HV (954223890, 532183699) (2003-12) A Lawn Mower: Consumer Walk Behind
55R21 HVL (96145000100) (2005-02) Lawn Mower: Consumer Walk Behind
55R21 (954223210, 532188294) (2004-05) Hvd Lawn Mower: Consumer Walk Behind
55R21 (954223210, 532183699) (2004-03) Hvc Lawn Mower: Consumer Walk Behind
R152 (96141006401) (2008-07) Svsw Lawn Mower: Consumer Walk Behind
R152 (96141006400, 961410064) (2006-02) Svsw Lawn Mower: Consumer Walk Behind
R152 (95417024401) (2005-02) Svsw Lawn Mower: Consumer Walk Behind
R152 (95417024400, 954170244) (2005-02) Svsw Lawn Mower: Consumer Walk Behind
R152 (R152SVC, 954170233) (2004-10) Sv Lawn Mower: Consumer Walk Behind
R152 (R152SVB, 954170233) (2004-10) Sv Lawn Mower: Consumer Walk Behind
R152 (96141006301, 961410063) (2008-02) Svh-Bbc
R152 (96141006300, 961410063) (2006-02) Svbbc
R152 (95417024202, 954170242) (2005-04) Svbbc
R152 (95417024201, 954170242) (2005-02) Svbbc
R152 (95417024200, 954170242) (2005-02) Svbbc
R152 (96141006500, 961410065) (2006-02) Svb Lawn Mower: Consumer Walk Behind
R152 (95417024500, 954170245) (2005-02) Svb Lawn Mower: Consumer Walk Behind
R152 (96141006200, 961410062) (2006-01) Sv Lawn Mower: Consumer Walk Behind
R152 (95417021702, 954170217) (2005-02) Sv Lawn Mower: Consumer Walk Behind
R152 (95417021701, 954170217) (2005-02) Sv Lawn Mower: Consumer Walk Behind
R152 (95417021700, 954170217) (2005-02) Sv Lawn Mower: Consumer Walk Behind
R152 SV (96141013400) (2007-03) Lawn Mower: Consumer Walk Behind
R152SVH (96141013300) (2007-03) Lawn Mower: Consumer Walk Behind
RSW21 (2003-10) 65 Hvb, 65 C21HVB, 917.374781
55R21 (96145000100) (2005-02) Lawn Mower: Consumer Walk Behind

Poulan
PR65Y21RHP Rotary Lawn Mower
PR65Y21RKP (96142002401) Rotary Lawn Mower
PR7Y21RHP Lawn Mower
PR675Y21RHP (96142000900) Gas Lawn Mower
PR675Y21RHP (96142000901) Gas Lawn Mower
PR675Y21RHP (96142000902) Gas Lawn Mower
PR675HVP (96142001500) Rotary Lawn Mower
PR675HVP (96142001501) Rotary Lawn Mower
PR675HVP (96142001502) Rotary Lawn Mower
PR55R21AD Lawn Mower
PR55Y21RH Lawn Mower
PR65Y21RSP Rotary Lawn Mower
PR675Y21RDP ((96142001000)) Rotary Lawn Mower
961420032 Self Propelled Rotary Lawn Mower


Husqvarna
55 B 21 HVA (954223227) (2003-09) Walk Mower
55 B 21 HVB (954223227) (2003-12) Walk Mower
55 B 21 HVC (954223227) (2004-03) Walk Mower
55 C 21 HVA (954223890) (2003-12) Walk Mower
55 C 21 HVA (954223890) (2004-01) Walk Mower
55 R 21 HV (96143000500) (2005-01) Walk Mower
55 R 21 HV (96143000501) (2005-02) Walk Mower
55 R 21 HV (96143000502) (2006-02) Walk Mower
55 R 21 HVA (954223210) (2003-06) Walk Mower
55 R 21 HVB (954223210) (2003-12) Walk Mower
55 R 21 HVC (954223210) (2003-12) Walk Mower
55 R 21 HVD (954223210) (2004-01) Walk Mower
55 R 21 HVL (96145000100) (2004-11) Walk Mower
55 R 21 HVL (96145000101) (2005-02) Walk Mower
55 R 21 HVL (96145000102) (2004-12) Walk Mower
55 R 21 HVL (96145000103) (2005-01) Walk Mower
5521 BBC (96143001300) (2006-02) Walk Mower
5521 BBC (96145000200) (2005-05) Walk Mower
5521 BBC (96145000201) (2005-07) Walk Mower
5521 BBC (96145000202) (2005-06) Walk Mower
5521 CHV (96143000100) (2004-12) Walk Mower
5521 CHVB (954223883) (2004-07) Walk Mower
5521 RSC (954223470) (2004-07) Lawn Mower
5521 RSD (954223470) (2004-07) Lawn Mower
5521 RSE (954223470) (2004-07) Lawn Mower
5521 RSX (96143002400) (2007-01) Lawn Mower
6522 SH (96143000900) (2005-01) Lawn Mower
6522 SL (96143000800) (2005-09) Lawn Mower
67521 HV (96143001000) (2005-01) Lawn Mower
67521 HVE (96143001100) (2005-01) Lawn Mower
70 R 21 HV (96143001400) (2006-05) Lawn Mower
70 R 21 HV (96143001401) (2006-02) Lawn Mower
7021 RES (96143001800) (2006-01) Lawn Mower
7021 RES (96143001801) (2006-04) Lawn Mower
7021 RS (96143001700) (2006-01) Lawn Mower
87521 RES (2007-02) Lawn Mower
917.375940 (2005-01) Lawn Mower
65RSW21HVA Walk Mower
55C21HVB (2005) 954223890 Walk Behind Rotary Mower
