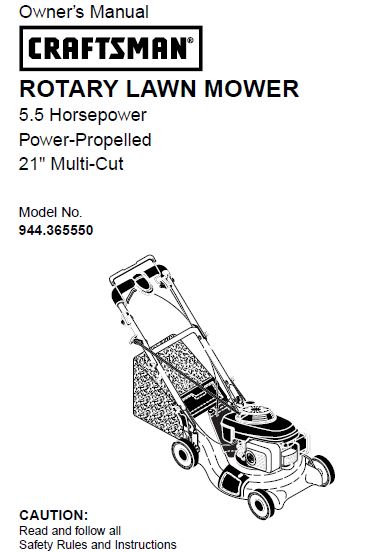

944.365550 Manual for Craftsman 21" Self-Propelled Multi-Cut Lawn Mower

944.365550 Manual for Craftsman 21" Self-Propelled Multi-Cut Lawn Mower

DR Mower Parts

  • $0.00


944.365550 Manual for Craftsman 21" Self-Propelled Multi-Cut Lawn Mower includes owner's manual, parts list for lawnmower and parts list for Honda engine GCV-160-ABHH.

944.365550, 944-365550, 944365550, 944 365550

We carry parts for this lawn mower and parts for the engine.  If you can't find the parts you need in our online store, please contact us for assistance: parts@drmower.ca 1-877-531-2873

1 189746 Handle, Upper (Includes Foam Grip)
2 193664X479 Handle, Lower
3 186053 Spring, Rear Door, RH
4 179585 Rope Guide
5 132004 Nut, Hex, with Lockwasher Insert 1/4-20
6 66426 Wire, Tie
7 191574 Bolt, Handle 5/16-18 x 1.75
8 182398 Knob, Handle
9 187138X428 Control Bar
12 51793 Cotter, Hairpin
13 186052 Spring, Rear Door, LH
16 185855X428 Rear Door
17 184193 Bolt, Rear Door
18 187535 Plug, Mulcher
19 196918 Lawn Mower Housing Assembly
20 193917X479 Handle Bracket Assembly, LH
21 193916X479 Handle Bracket Assembly, RH
22 150078 Screw, Hex Washer Head 5/16-18 x 3/4
23 163183 Bolt, Hex Head 5/16-18 x 5/8
24 73800500 Lockut, Hex 5/16-18
25 161333 Baffl e, Side
26 163409 Screw #12 x 5/8
27 188986 Rear Skirt
28 88652 Screw, Hinge 1/4-20 x 1.25
31 180459 Blade, 21"
37 150406 Bolt, Engine, Dogpoint 3/8-16
38 - - - Engine, Honda, Model Number
GCV-160-ABHH (See Breakdown)
39 194133 Grassbag
40 188817 Frame, Grassbag
41 107339X Danger Decal
42 54583 Screw, Tapping, Hex Head, Sems 1/4-20 x 1/2
45 183058X428 Mulcher Door Assembly
46 169699X428 Discharge Defl ector
47 88349 Nut, Hex, Flangelock 1/4-20
48 182226 Spring, Return

 50 57808 Screw, Tapping, Hex Head 1/4-20 x 3/4
51 193791 Pulley Assembly, V-Groove
52 145212 Nut, Hex, Flangelock
53 155552 Nut, Hex, Centerlock 5/16-18
54 193792X004 Idler Arm
55 166043 Idler Pulley
56 160829 Bolt, Shoulder 5/16-18 x 1/2
57 193275X004 Bracket Assembly
58 182003 Clip, Wireform
59 182748 Grip, Foam
60 190878 Throttle / Engine Control
61 183365 Screw, Hex Head 1/4-20 x 2-1/8
62 182131 Belt Guide, Stud
63 850263 Washer, Lock 3/8
64 73900600 Nut, Hex 3/8-16
65 190903 Bracket, Throttle
66 189937 Screw, Hex Washer Head 1/4-20 x 1/2
67 194129X428 Blade Brake / Clutch Control
68 180460 Bolt, Hex Head
69 - - - Blade Brake Clutch (See Engine Breakdown)
70 183758X479 Belt Cover, Upper
71 180191 Belt Cover, Lower
72 750097 Screw, Tapping, Hex Washer Head #10-24
73 180393 Spring
74 73900400 Nut, Hex, Centerlock, Zinc Plated 1/4-20
75 188525X004 Bracket
76 74780410 Bolt, Hex Cap Head 1/4-20 x 5/8
77 53998 Washer, Flat
78 73510600 Nut, Hex 3/8-16
79 182132 Belt Keeper
80 180394 Spring
96 192770 Clip, Cable
81 180188 Link, Torque

1 196782 Drive Control Assembly (Includes Cable)
2 195745 Cover, Top
3 187353 Pulley
4 188281 Lever, Drive Control
5 195744 Cover, Bottom
6 186198 Screw
7 184212X479 Mounting Bracket
8 184987 Cap, Bottom
9 196784 Cable, Drive
10 194215 Decal, Drive Control Operation
12 187653 Screw
13 188645 Gear Case Assembly, Complete
14 194128 Pulley, Drive
16 161584 Rod, Connecting
17 161602 Spring, Extension
18 193663X004 Spring, Selector
19 167650 Knob, Selector Spring
20 12000022 E-Ring 7/8
21 163365 Bearing, Support
22 169911 Bearing, Ball
23 161118X004 Retainer, Drive Assembly
24 57808 Screw, Tapping, Hex Head 1/4-20 x .75
25 194730X428 Cover Drive
26 750634 Screw, Threaded, Rolled #10-25 x .50
27 52160 Washer, Shim (as required)
28 12000058 E-Ring 7/16
29 189403 Cover, Dust, Wheel
30 175104 Disc, Drive
31 184172 Seal, Friction
32 180774 Wheel 9 x 2

33 83923 Nut, Flangelock 3/8-16
34 180626 Hubcap, Mag
35 193440X004 Shaft Assembly, Rear
36 193438X004 Shaft Assembly, Front
37 161463 Retainer, Front Shaft
38 163409 Screw #12 x 5/8
39 700279 Clip, Retainer
40 150339 Wheel 8 x 2
41 188330 Pinion Assembly, RH
42 145212 Nut, Flangelock
43 188331 Pinion Assembly, LH
44 182212 V-Belt
45 175098 Pawl
46 188291 Spring, Torsion
47 67725 Washer
48 175105 Retainer, Drive, LH
49 175103 Pinion, Gear
50 175102 Retainer, Drive, RH
51 187530 * Case, Lower
52 187531 * Case, Upper
53 187532 Gear, 24 Teeth
54 187533 Shaft, Input
55 183505 Wire, Formed
56 183506 Bearing, Ball
57 183508 Seal, Output Shaft
58 183509 Washer
59 183511 Bushing
60 191249 Shaft, Output
61 183513 Screw
62 183514 Seal, Input Shaft
