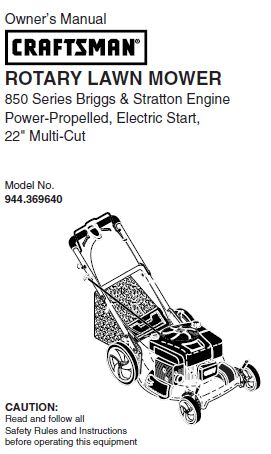

Manual for Craftsman 22" Electric Start Self-Propelled Lawn Mower with Briggs & Stratton 850 Series Engine. Includes owner's manual and parts lists for the lawnmower and the engine.

944.369640, 944369640, 944-369640, 944 369640

We carry parts for this lawn mower and engine parts.  If you can't find the parts you need in our online store, please contact us for assistance: parts@drmower.ca 1-877-531-2873.

1 427433 Drive Control Assembly (Includes Cable) - changes to 581568201
2 424630 Cover, Top
3 420378 Cam
4 421538X615 Lever, Drive Control, RH
5 420381 Spring, Return
6 181698 Screw
7 420377X428 Cover, Bottom
8 178848 Screw #10-16 x 5/8
9 427426 Cable, Drive - no longer available, none in stock
10 421537X615 Lever, Drive Control, LH
11 194231X460 Wheel & Tire Assembly, Front
12 12000058 E-Ring
13 403849 Pinion
14 189403 Dust Cover
15 404845 Pawl, Drive
16 67725 Washer, Flat 3/8
17 413808 Nut, Push
18 419345X615 Selector Knob
25 404843X004 Belt Guide Bracket
26 163409 Screw, Hi-Lo Thread #12 x 5/8
27 175262 Screw, Pan Head #10-24 x 2-3/4
28 421094 Drive Cover
29 409148 Locknut, Hex
32 194018 Drive Pulley
33 426609 V-Belt
35 424524 Kit, Wheel Adjuster, Front, LH (Includes Red Knob and Pushnut)
36 424657 Gear Case Assembly, Complete
38 191730 Locknut, Hex 1/4-20
40 406558 Spring
41 424522 Kit, Wheel Adjuster, Front, RH
(Includes Red Knob and Pushnut)
54 422507 Grassbag
57 419951 Frame, Grassbag
80 421114 Kit, Water Washout Assembly
(Includes Key Numbers 81 thru 83)
81 419735 Fitting, Water Washout
82 415585 Washer, Lock, Internal Tooth
83 415586 Locknut, Hex, with O-Ring

1 184576 Upper Handle Assembly (Includes Foam Grip)
2 425078 Cable, Engine Zone Control / Rear Door Prop
3 86899X004 Bracket, Upstop
4 145006 Guide, Cable
5 66426 Wire Tie
6 182398 Handle Knob, Star
7 750634 Screw #10-24 x 1/2
8 426432X428 Control Bar
9 424207 Rear Door Assembly
10 19131610 Washer
11 425575 Hairpin, Door/Handle Pivot
12 189713X428 Handle Knob, Standard
17 427120X428 Rear Baffl e
18 132004 Keps Locknut 1/4-20
19 194788 Rope Guide
20 423323 Rear Skirt
21 419949 Spring, Rear Door, LH, Black
22 141841 Screw, Panhead, Torx #20
24 419948 Spring, Rear Door, RH, Grey
25 409148 Locknut, Hex
26 419945 Screw, Rear Door/Handle Pivot
27 194387X460 Wheel & Tire Assembly, Rear
28 72250505 Bolt, Carriage 5/16-18 x 5/8
30 413808 Nut, Push
31 419407X615 Selector Knob
32 419944 Latch, Mulcher Door

33 423358 Mulcher Door
34 419946X615 Bracket, Grassbag
35 427361 Kit, Wheel Adjuster, Rear, RH (Includes Red Knob & Pushnut)
36 175735 Hinge Bracket Assembly
37 17000512 Screw, Flanged, Thread Cutting 5/16-18 x 3/4
38 419942X428 Discharge Defl ector
39 419033X479 Handle Bracket, LH
40 419031X479 Handle Bracket, RH
41 150406 Bolt, Engine 3/8-16
42 193000 Spring, Torsion
43 191730 Nut, Hex, Nylock
44 424995 Kit, Lawn Mower Housing
45 175650 Rod, Hinge
46 421782 Blade Adapter / Pulley
47 421825 Blade, 22"
48 851074 Washer, Hardened
49 850263 Washer, Helical
50 851084 Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
51 419943 Front Baffle
52 404763 Decal, Danger
53 17060408 Screw, Semi-Gimlett Point
1/4-20 x 1/2
54 88348 Washer, Flat
55 191730 Nut, Hex
56 17411312 Screw, Hex Washer Head #13 x 3/4

57 155377 Nut, Hex
58 421241X479 Lower Handle
59 191574 Handle Bolt
61 73930500 Nut, Hex 3/8-16
62 420474X004 Belt Retainer
63 178848 Screw #10-16 x 5/8
64 - - - Engine, Briggs & Stratton, Model Number 121R05-0411-F1 (See Breakdown)
65 197480 O-Ring
68 427375 Kit, Wheel Adjuster, Rear, LH (Includes Red Knob and Pushnut)
70 182748 Grip, Foam
71 422114 Wiring Harness, Battery
72 425937 Fuse, 40 Amp
73 194847 Wiring Harness,
Key Switch Housing
74 423264 Battery
75 186159 Screw
76 180331 Key
77 194848 Nut, Cap
78 423800 Key Start Switch (Includes Key)
79 422115 Wiring Harness, Handle
80 190097 Charger, Battery
- - 427311 Owner’s Manual, English
- - 427312 Owner's Manual, French
